Groups: Registered
Joined: 9/7/2012(UTC)
Posts: 5
Thanks: 1 times
|
I have been trying with no sucess to use my Bags Tags Boxes and More 2 cart in CCR. I can cut the shape but the lines will not line up for scoring. Does anyone know how to do this in CCR. I have found the instructions on how to use the scoring tip on the E2 but not using the craft room. I use the craft room all the time and dont even know ( or want to know ) how to use my E2 as a stand alone machine. Everything I do I do with CCR.
Any help would be welcomed I am getting very angry with this and ready to throw it out the window. !!!
|
|
|
|
|
|
Medals:  Groups: Circle Member, Registered Joined: 9/26/2006(UTC) Posts: 9,633  Location: Brisbane, Australia Thanks: 1833 times
Was thanked: 6611 time(s) in 3102 post(s)
|
Originally Posted by: joy48543d7ad57  I have been trying with no sucess to use my Bags Tags Boxes and More 2 cart in CCR. I can cut the shape but the lines will not line up for scoring. Does anyone know how to do this in CCR. I have found the instructions on how to use the scoring tip on the E2 but not using the craft room. I use the craft room all the time and dont even know ( or want to know ) how to use my E2 as a stand alone machine. Everything I do I do with CCR.

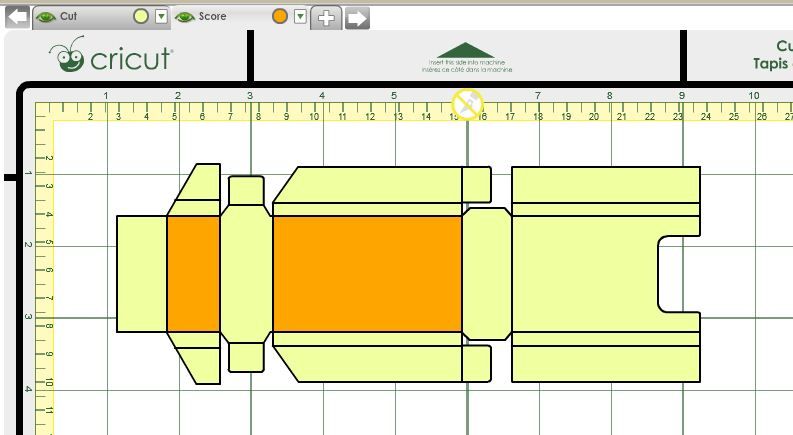

Any help would be welcomed I am getting very angry with this and ready to throw it out the window. !!! I would use two mats. One for the scoring layer and one for the cutting layer. Place one over the other and line them up. Then send the scoring layer to the E2 (using the score blade or by dropping the blade depth down) and don't unload the mat when it's done. Then send the cutting layer to the E2 (replacing the blade first) This is what my CCR screen looks like with the two layers.
|
 2 users thanked Narelle for this useful post.
|
|
|
|
Groups: Registered
Joined: 9/7/2012(UTC)
Posts: 5
Thanks: 1 times
|
Thank you so much for your information , I will give that a try, however I am trying to make the Easter Basket and cutting it at 5 inches, the score lines just dont line up whatever I do.
It is
really frustrating as I love CCR but having bought a cartridge that cuts boxes it would be great to try them if only I could line up the score lines with the image.
|
|
|
|
|
|
Medals: Groups: Circle Member, Registered Joined: 7/12/2008(UTC) Posts: 20,585  Location: Alpharetta Georgia Thanks: 6887 times
Was thanked: 14944 time(s) in 6966 post(s)
|
Do you have CCR set to REAL size {the icon at the bottom of the keypad where the lower case and upper case "A" are the same size}? That makes bot the images 5 inches {or whatever size you set on the dial} instead of the two images being proportional to each other. If you use RELATIVE size {the "Aa" icon}, they should match. Edited by user Wednesday, February 27, 2013 10:17:00 AM(UTC)
| Reason: Not specified scrapalette attached the following image(s):
|
|
|
|
|
|
Medals: Groups: Registered, Circle Member
Joined: 1/30/2011(UTC)
Posts: 1,106
Location: Great White North
Thanks: 88 times
Was thanked: 259 time(s) in 192 post(s)
|
Originally Posted by: scrapalette Do you have CCR set to REAL size {the icon at the bottom of the keypad where the lower case and upper case "A" are the same size}? That makes bot the images 5 inches {or whatever size you set on the dial} instead of the two images being proportional to each other.
If you use RELATIVE size {the "Aa" icon}, they should match. This is what I was going to ask.
|
|
|
|
|
|
Groups: Registered
Joined: 9/7/2012(UTC)
Posts: 5
Thanks: 1 times
|
Thank you ladies , I am going to give your ideas a try this weekend. It was starting to really annoy me and I could find help nowhere Thanks again
|
|
|
|
|
|
Groups: Registered
Joined: 3/3/2013(UTC)
Posts: 1
|
I found the following information somewhere and it worked for me quite well. Try the following:
. Turn your blade setting down to "2" and your pressure to "low". Load mat and select "shift" and the box you would like to cut. This will score your lines for you. After it's finished scoring, do not remove. Hit "load mat" again and it will reset to the original spot. Turn your blade back to cutting depth (I used 6) being careful not to move the blade carriage and your pressure back up (I use high). Select the box to be cut and it will then cut your lines. When it's finished you should have a box cutout as well as score lines!
I hope this has helped.
Pat
|
|
|
|
|
|
Groups: Registered
Joined: 1/16/2013(UTC)
Posts: 8
Was thanked: 1 time(s) in 1 post(s)
|
Hi pcrivellone57f4f9d860 does this work with the cricut mini? and if you turn the blade setting down to 2 does that mean I don't have to purchase a scoring tip? I'm new to the machine and need all the help I can get so any advice is gratefully received thanks.
|
|
|
|
|
|
Groups: Registered
Joined: 12/27/2010(UTC) Posts: 1,791 Location: Baltimore MD Thanks: 29 times
Was thanked: 372 time(s) in 281 post(s)
|
Originally Posted by: stitchystuffd23986ba Hi pcrivellone57f4f9d860 does this work with the cricut mini? and if you turn the blade setting down to 2 does that mean I don't have to purchase a scoring tip? I'm new to the machine and need all the help I can get so any advice is gratefully received thanks. It works for all of the machines but only with the TBBM2 cart..depending on the paper that i use i may have the blade on 1 but thicker paper i use 2 as well.
|
|
|
|
|
|
Medals: Groups: Registered, Circle Member
Joined: 2/21/2009(UTC)
Posts: 10,859
Location: Illinois
Thanks: 8650 times
Was thanked: 4383 time(s) in 2921 post(s)
|
Originally Posted by: Maxluv It works for all of the machines but only with the TBBM2 cart..depending on the paper that i use i may have the blade on 1 but thicker paper i use 2 as well. I never knew this about TBBM2....I'll have to think about that cartridge. Char
|
|
|
|
|
|
Groups: Registered
Joined: 12/27/2010(UTC) Posts: 1,791 Location: Baltimore MD Thanks: 29 times
Was thanked: 372 time(s) in 281 post(s)
|
Originally Posted by: CricketCMV I never knew this about TBBM2....I'll have to think about that cartridge.
Char Yes the TBBM2 has a scoring feature, you score it first, reload and then cut, is that what you didnt know?
|
1 user thanked Maxluv for this useful post.
|
|
|
|
Medals: Groups: Registered, Circle Member
Joined: 2/21/2009(UTC)
Posts: 10,859
Location: Illinois
Thanks: 8650 times
Was thanked: 4383 time(s) in 2921 post(s)
|
Originally Posted by: Maxluv Yes the TBBM2 has a scoring feature, you score it first, reload and then cut, is that what you didnt know? I just didn't know it did the scoring for you. I guess I've heard others talk about it; just didn't pay that much attention because I never thought I would need the cartridge. I do realize when you use something else in the housing you would use it first and then replace it with the blade to reload and cut again. Thanks, Maxluv. Char
|
|
|
|
|
|
Groups: Registered
Joined: 3/10/2013(UTC)
Posts: 1
|
hi guys I read to this post that basically I dont need to buy scoring tip?what is the trick if I bought scoring tip and my project are not aligning to each other?and do i score first and cut or the other way around
|
|
|
|
|
|
